SKU/Artículo: AMZ-B07PFCLJ1Z

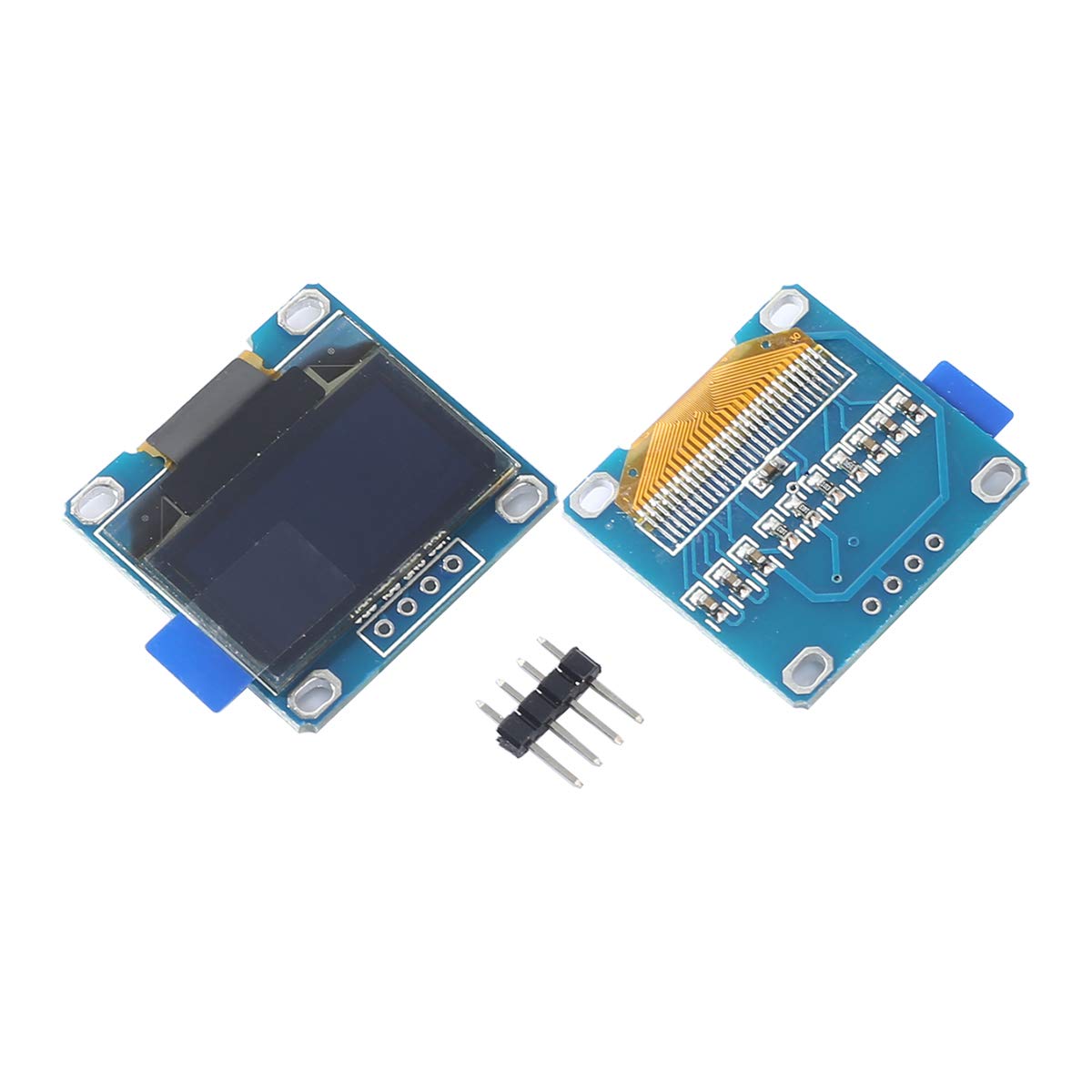

DEVMO 12864 0.96 Inch I2c IIC Serial OLED LCD LED Display Screen Serial Module 128 X 64 Compatible with Ar-duino Display Raspberry PI 51 Msp420 Stim32
En stock
0.36 kg
Sí
Nuevo
Amazon
- The IIC address can be changed, it is convenient to use with different machines.
- High resolution: 128 * 64. Viewing angle:> 160 °.
- Supports many control chip: Fully compatible with Ar-duino, 51 Series.
- Ultra-low power consumption: full screen lit 0.08W.
- Voltage: 3V ~ 5V DC. Working Temperature: -30 ℃ ~ 70 ℃.
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
Conoce más detalles
Product description 128*64 LED display module for Ar-duino, supports many control chip. Fully compatible with for Ar-duino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc. Ultra-low power consumption: full screen lit 0.08W Super high brightness and contrast are adjustable With embedded driver/controller Interface type is IIC I2C/IIC Interface, need 2 IO only. Resolution: 128X64 Drive Duty: 1/64 Duty Viewing angle: greater than 160 degrees Pins: 4 pins Pin Definition: GND, VCC ,SCL, SDA 1:GND(OLED power supply) 2:VCC (OLED 3.3~5V) 3:SCL(OLED IIC Clock line) 4:SDA(OLED IIC Cable) Voltage: 3V ~ 5V DC Working Temperature: -30 ℃ ~ 70 ℃ Drive Duty: 1/64 Duty High resolution: 128 * 64 Driver IC: SSD1306 Package Included: 1 X 128x64 LED display module for Ar-duino
