SKU/Artículo: AMZ-B0881N7F4M

Oono

12V 50Amp Forward and Reverse Relay Module for Motor/Linear Actuator, Reversing Relay Module

0 5 4 42

42 calificaciones

Style:

12V

Disponibilidad:
En stock

Peso con empaque:
0.69 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Reversing relay module. Powers any reversing motor equipment, can be used for any application that requires the ability to reverse motion.

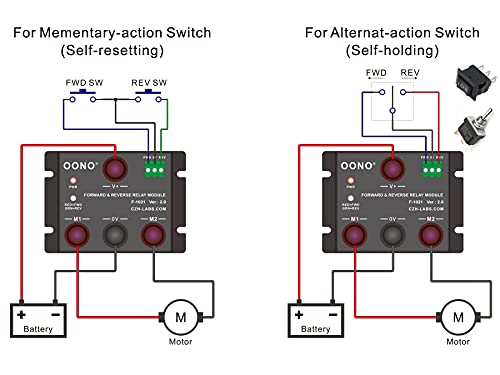

Support Momentary-action(Self-resetting) switch and Alternate-action (Self-holding) switch. For Self-resetting switch, when the switch is pressed the motor operates, and when the switch is released the motor stops.
High quality aluminum enclosure, thickness 1.5mm/0.06". Diameter M6 / 6mm threaded copper terminals for power supply and load. Connect switch terminal block: pitch 5.0mm/0.197", wire size 26~12 AWG / 2.5mm square, stripping length 7mm/0.28", Metric M2.5 slotted screw.
Operating Voltage: 10 ~ 15V DC, Rated current 50 Amp. Power on indicating red LED. Forward and Reverse status indicating LED, forward status lighting red, reverse lighting green.
