SKU/Artículo: AMZ-B08M5CCQYF

CANADUINO

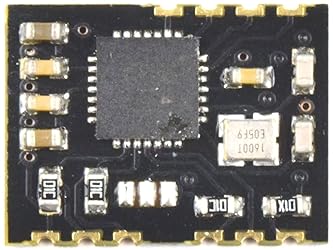

CANADUINO® EverSet ES100-MOD WWVB BPSK Phase Modulation Receiver Module - Made in Canada (USMCA Complaint = no tariffs for US customers)

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

EverSet ES100 is a fully self-contained phase modulation time code receiver that receives and decodes the 60 kHz time signal from the National Institute of Standards and Technology’s WWVB transmitter located in Ft. Collins, Colorado, USA.It contains a digital correlation receiver to extract the time code information from the received signal. It also has a simple serial interface (I2C) to transfer the date, time, and DST information to a host microcontroller.EverSet ES100 is compatible with existing WWVB receive antennas and offers significantly improved performance in low signal-to-noise and low signal-to-interference scenarios when compared to amplitude modulation receivers.FEATURESReceives new phase-modulated WWVB signalSignificantly outperforms all other WWVB receiversLow power dissipation2-wire serial interfaceTwo antenna inputs3.3V (2.0-3.6V max.) power supply and logic levelMax. current consumption 28mA (processing)Min. current consumption <0.1mA (standby)Full-Frame reception time 134 secondsTracking Mode reception time 24.5 secondsI2C Pull-Up Resistors on-board (selectable)APPLICATIONSAnalog and digital wall clocksClock radiosConsumer ElectronicsHigh Precision Time BaseThe original WWVB broadcast signal has been challenged with reception issues in many locations and environments. The reception issues are primarily a result of the vulnerability of this modulation scheme to interference, and the need for a relatively high level of the received signal.The BPSK transmission standard and the ES100 receiver technology address all these issues and offer up to 100 times better reception than the genuine AM signal.

Producto prohibido

Este producto no está disponible

Medios de pago

Conoce más detalles

EverSet ES100 is a fully self-contained phase modulation time code receiver that receives and decodes the 60 kHz time signal from the National Institute of Standards and Technology's WWVB transmitter located in Ft. Collins, Colorado, USA. It contains a digital correlation receiver to extract the time code information from the received signal. It also has a simple serial interface (I2C) to transfer the date, time, and DST information to a host microcontroller. EverSet ES100 is compatible with existing WWVB receive antennas and offers significantly improved performance in low signal-to-noise and low signal-to-interference scenarios when compared to amplitude modulation receivers. Dokumentation, Demo Code, Libraries etc. available on Manufacturer's Website. MADE IN CANADA (CUSMA compliant = no tariffs for US customers)
