SKU/Artículo: AMZ-B093LB674F

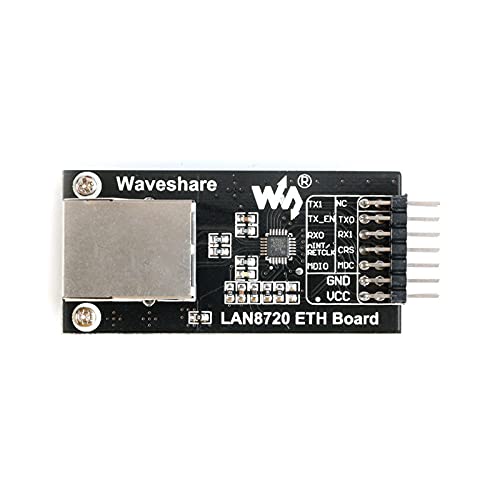

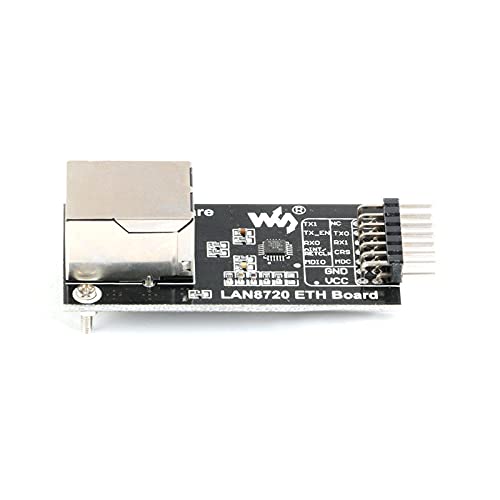

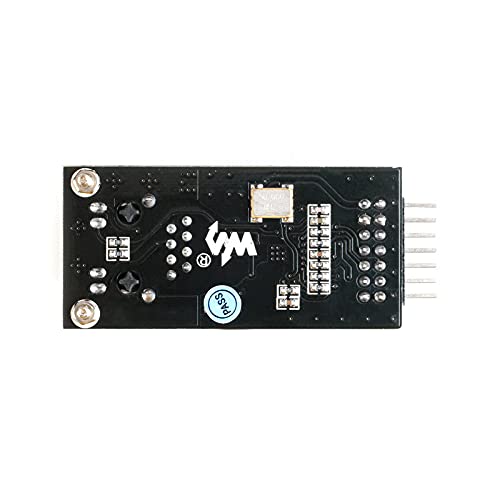

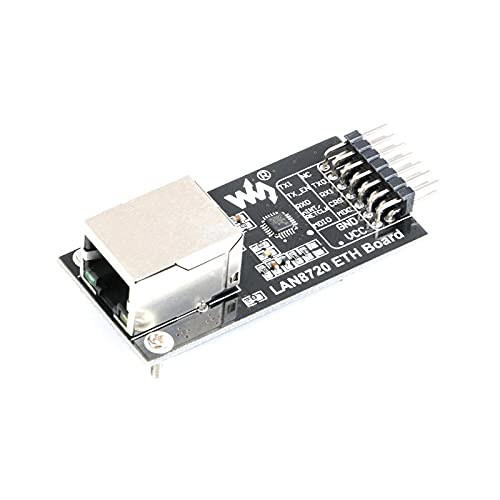

LAN8720 Network Module Ethernet Transceiver RMII Interface Development Board Smart Electronics for Arduino
En stock
0.52 kg
No
Nuevo
Amazon
- LAN8720 Network Module Ethernet Transceiver RMII Interface Development Board Smart Electronics for Arduino
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
Conoce más detalles
It supports communication with the Ethernet MAC layer controller through the RMII interface. The LAN8720 can communicate with the destination host in an optimal way by auto-negotiation (speed and duplex mode); HP Auto-MDIX auto-flip function is supported, and the connection can be automatically changed to direct or cross-connect without changing the network cable. It can work in loopback mode; wake-up detection in connected state; multiple low-power modes; integrated power-on reset circuit and 1.2V linear regulator circuit; two LEDs that indicate the working state of the LED.Parameter: Size: 56.2mmx27.2mmx17.2mm 2.54mm double row elbows with two M2 screw mounting holes and two M2 screw nuts Onboard 50Mhz active crystal oscillator Compatible with IEEE 802.3/802.3u (Fast Ethernet) ISO 802-3/IEEE 802.390 (10BASE-T) Working temperature: 0~85 degree
