5Pcs ESP32 Development Board CP2102 Chip 38Pin Narrow Version WiFi + Bluetooth Microcontroller Dual Cores ESP-32 ESP-32D Board ESP-WROOM-32 2 in 1 Dual Core Low Power Consumption ESP-32
Size:
5pcs micro usb
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto

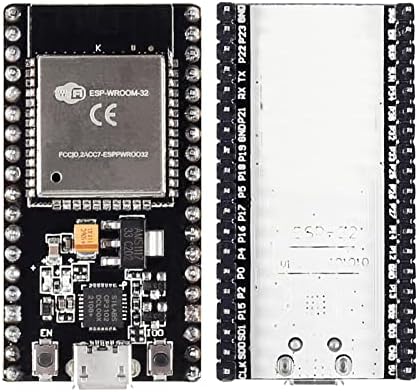

- The esp32D module has 38 pins and has more features than a 30-pin module, narrower width, compatible with breadboard
- ESP32 is a WiFi+Bluetooth chip developed. It is designed to provide access network functionality for embedded products.
- ESP32s development board support Lua program, easy to develop, support of three modes: AP, STA and AP + STA.
- ESP32-DevKitC-32 is based on the ESP-32d module. The platform uses many open source projects , this module is safe, reliable, and scalable to a variety of applications.
- The esp32 has two rows of pins, 19 each, for a total of 38 pins. There are six basic pins responsible for power supply and enabling. The rated current of the pins is 6mA, and the maximum current is 12mA
U$S 48,73
49% OFF
U$S 24,99
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 48,73
49% OFF
U$S 24,99
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

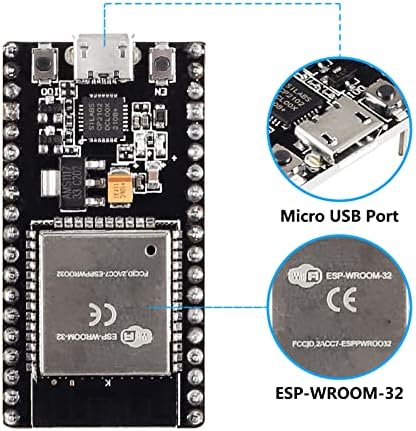

Small volume, narrow, easily embeded to other products Strong function with support LWIP protocol, Freertos Supporting three modes: AP, STA, and AP+STA Supporting Lua program, easily to develop Lua programming language support Complete microcontroller with WLAN (802.11bgn) and Bluetooth (Classic and LE) Reset and boot buttons are available, so a new firmware can be quickly and easily installed The development board combines a CPU with 2 Tensilica LX6 cores, clocked at up to 240 MHz, and 512 kilobytes SRAM in a single microcontroller chipGPIO function classification: ADC-Analog Signal Sampling: Available GPIO numbers-32, 33, 34, 35, 36, 39 DAC-Analog output: Available GPIO numbers-25, 26 UART-Serial Communication: Available GPIO numbers - 1(TX0), 3(RX0), 10(TX1), 9(RX1) , 17(TX2), 16(RX2) SPI-SPI bus interface: Available GPIO numbers - hspi(14,12,13,15) vspi(23,19,18,5) I2C-I2C bus interface: Available GPIO numbers - SDA(21) SCL(22) (MicroPython does not implement I2C in hardware)
