SKU/Artículo: AMZ-B0C7MS753B

WayPonDEV

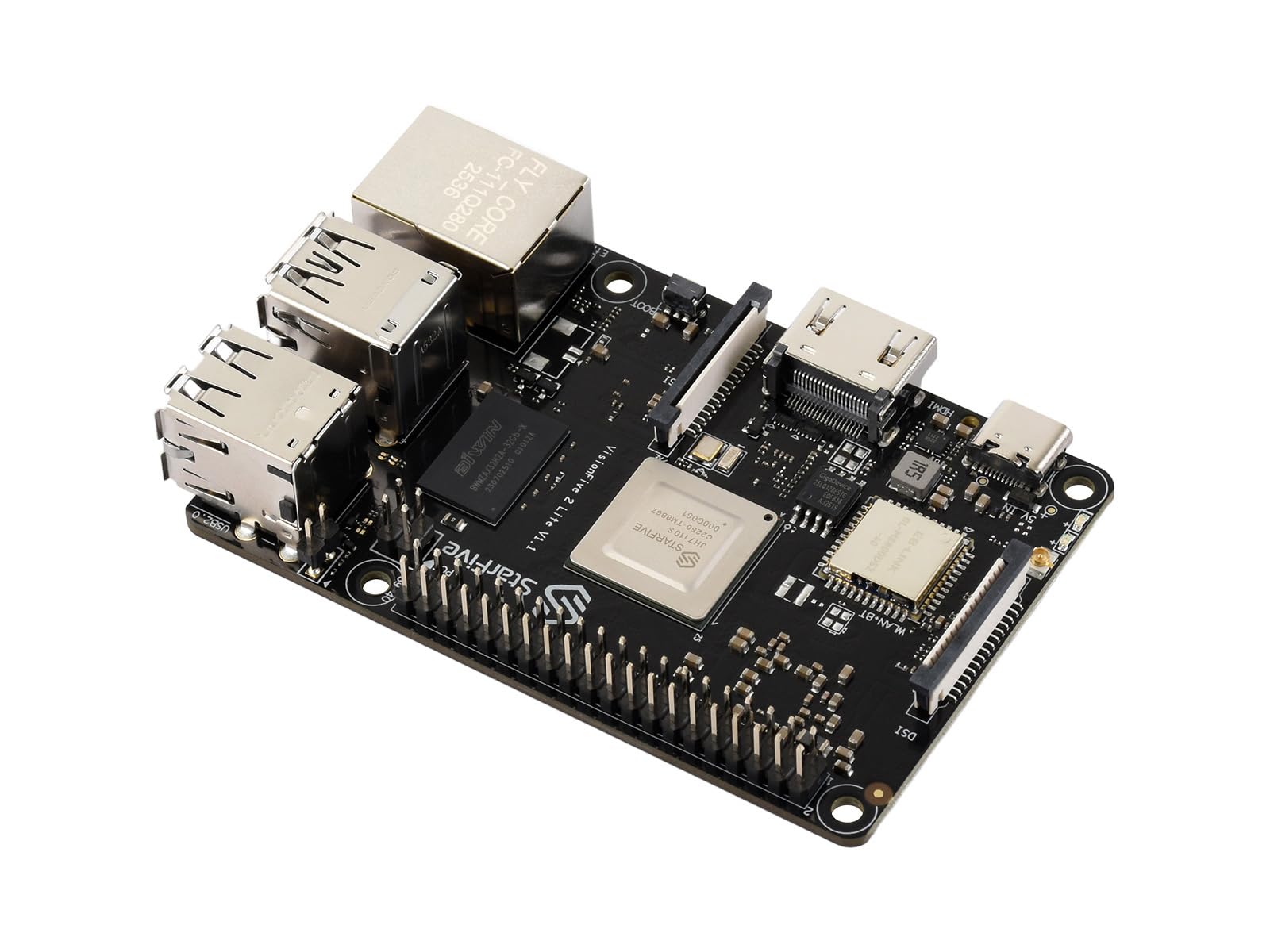

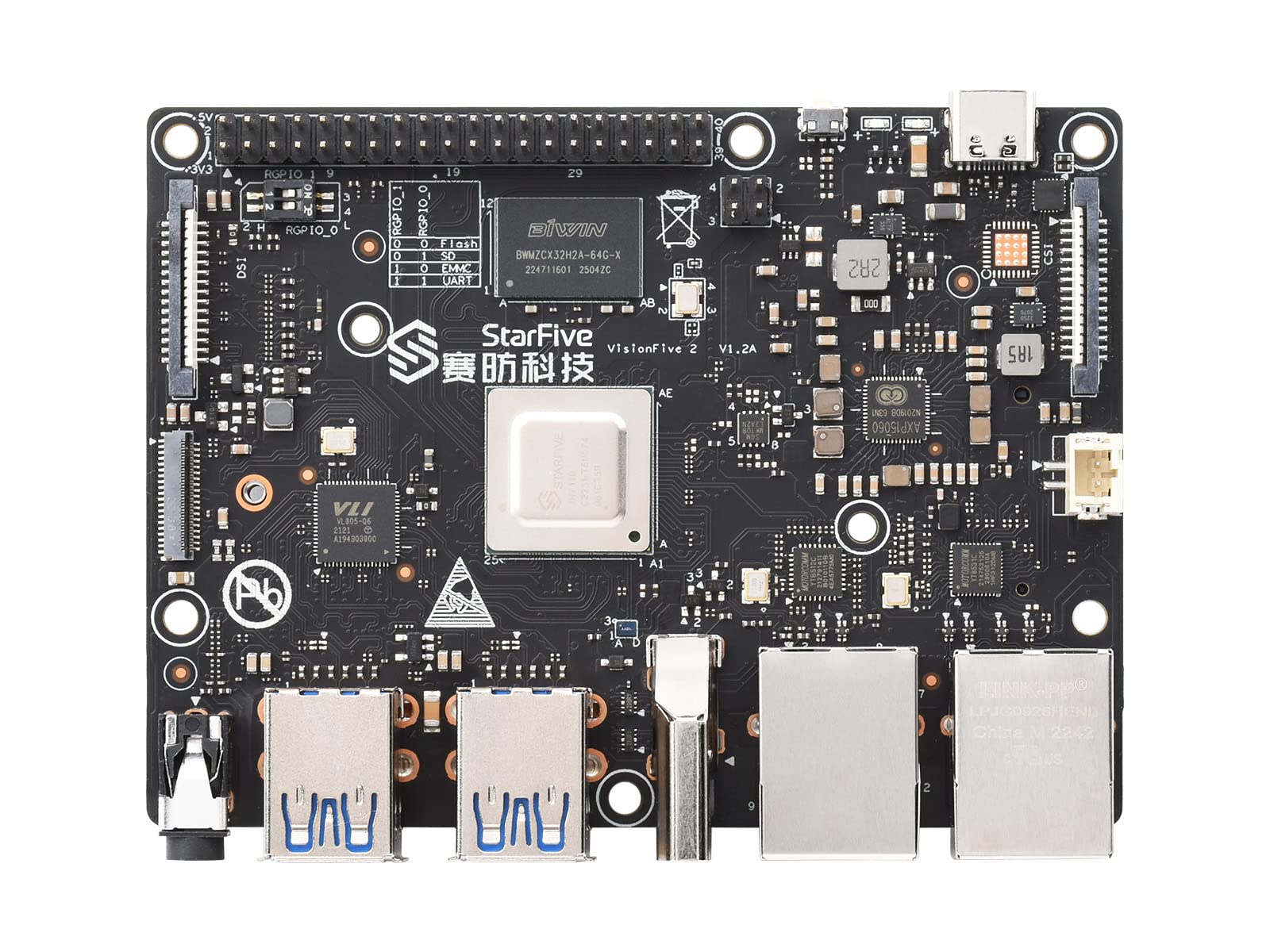

VisionFive2 Open Source RISC-V Linux Single Board Computer, StarFive JH7110 64-bit Quad-core CPU, IMG BXE-4-32 GPU LPDDR4 8GB RAM, Dual Gigabit Network, Support Linux Debian (with WiFi 6 Dongle)

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.60 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

-Specification-Processor：StarFive JH7110 with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHzIMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)Memory: 8GB LPDDR4 (up to 2800Mbps)Storage: Onboard TF card slot; Flash-Video Output-1 × 2-lane MIPI DSI display port, supporting up to 1080p@30fps1 × 4-lane MIPI DSI display port, supporting up to 2K@30fps in both single display and dual display modes1 × HDMI 2.0, supporting up to 4K@30fps or 2K@60fpsCamera：1x 2-lane MIPI CSI camera port, supporting up to 4K (3840 x 2160) pixels @30fps-Encoder/Decoder-Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265Video encoder supports up to 1080p@30fps and multi-stream for H265JPEG encoder/decoder-Peripherals-2 x USB 3.0 ports; 2 x USB 2.0 ports40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)2x RJ45 Ethernet Connector; Not WIFI3.5 mm Audio jack (4-pole stereo audio output)M.2 Connector；eMMC Socket；2 pin fan headerMicro-SD card slot for system boot and data storagePower Supply：Power 5V DC with PD, up to 30WPower Connector：USB Type-C port or 40-pin GPIO headerDimension: 100mm x 72 mm x 10mm-Operating Systems-mainstream Linux distributionsDebian,Fedora,Ubuntu,openSUSE-Package Content-VisionFive 2 8GB Single Board Computer x 1Wifi 6 dongle x 164GB TF Card x120W PD Power x 1, PD Fast Charging Line x 1Debug Serial Port x 1, Dupont Line x 1Metal Case x1-Technical Support-Please click "WayPonDEV" and ask a question. Please leave the message wpd#youyeetoo&com (#--->@,&--->.) skype: monica_9122.

U$S 239,17

44% OFF

U$S 132,87

U$S 239,17

44% OFF

U$S 132,87

Llega en 25 o más días hábiles

Tienes garantía de entrega

Medios de pago

Cantidad

Medios de pago

Conoce más detalles

[StarFive RISC-V JH7110 SoC] VisionFive2 Mini PC Integrated StarFive JH7110 with RISC-V U74 quad-core CPU, with 2MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz. Paired with IMG BXE-4-32 MC1 3D GPU,work frequency up to 600 MHz (400 MHz by default).Suport with Vision DSP, NVDLA engine, and neural network engine for AI acceleration. [OpenGL and FFMpeg Support] VisionFive2 RISC-V Single Board Computer Integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2 and Vulkan 1.2; supports running OpenGL, Vulkan and FFMpeg demos. [Rich Interface] M.2 connector, eMMC socket,1000M Network Port and WiFi Slot; 40 Pin GPIO Header, 2x RJ45 Ethernet Connector and Micro-SD card slot; 2 x USB 3.0 ports,2 x USB 2.0 ports,1 x USB Type-C port; TF card slot and Flash etc. [Multi-Function] Powerful Performance, Open Source Application Environment, And Rich Software Ecology, More Possibilities For VisonFive 2, while compatible with Raspberry Pi 4B and so on series boards. [Encoder/Decoder] Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265; Video encoder supports up to 1080p@30fps and multi-stream for H265; JPEG encoder/decoder. [Various OS Support] VisionFive2 RISC-V AI Single Board Computer as an open-source development board,is not only equipped with onboard audio processing and video processing capabilities, but also has multimedia peripheral interfaces MIPI-CSI and MIPI-DSI. The open-source VisionFive2 has strong software adaptability, supports Linux,Debian and Fedora operating system and various software running on the system. [Document] VisionFive2 OS download: "https://wiki.youyeetoo.com/en/VisionFive". Any question please click "WayPonDEV" store and ask a question. Or leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".

VisionFive2 Open Source RISC-V Linux Single Board Computer, StarFive JH7110 64-bit Quad-core CPU, IMG BXE-4-32 GPU LPDDR4 8GB RAM, Dual Gigabit Network, Support Linux Debian (with WiFi 6 Dongle)
