SKU/Artículo: AMZ-B0CJ7HW4M5

Generic

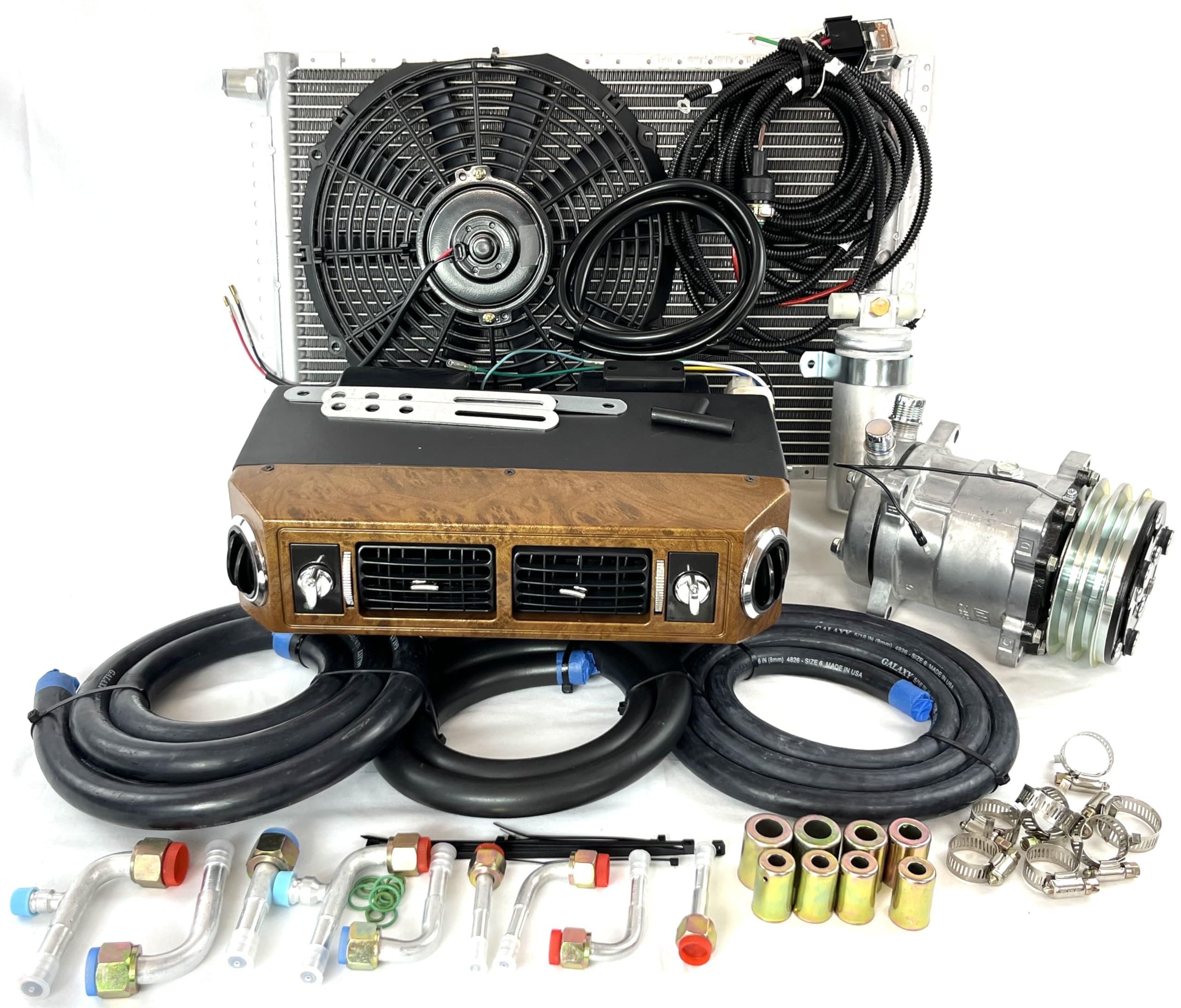

A/C KIT UNIVERSAL UNDERDASH EVAPORATOR 432-100 DCSL 12V WITH ELECTRICAL HARNESS

0 5 4 1

1 calificaciones

Disponibilidad:
En stock

Peso con empaque:
21.95 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Universal Under-Dash Evaporator Unit Model: E-432-0DCSL 4 OUTLETS 2.5" 10' FLEX HOSE 4 CHROME STAR LOUVERS VENTS Cool Only 32 pass 4way all aluminum coil Expansion valve 1.5 Ton Thermostat and rotative 3-speed blower switch 12 VOLTS DOUBLE SHALF BLOWER MOTOR Mounting bracket drain hose and T included 12,700BTU capacity 359 CFM DIMENSIONS: L14½" X D12½" X H6"
Compressor Model: C5H142A12V SD508 5H14 Sanden Style 2A Groove Pulley 12v coil Also available 8PK Pulley
Condenser Model: CPF121620 PARALLEL FLOW (micro-tube technology) 12"H X 16"L .70"(20mm Core Depth)W 4 Rails Aluminum #8 O-ring IN #6 O-ring OUT Condenser Fan Model: CF1212 12" Diameter 12 Volts 80W 6 AMP Reversible Puller or Pusher 4 Mounting Brackets included
Hoses Set Model: H6516,H81332, H1012 A/C HOSE #6 5/16 = 6'feet #8 13/32 = 4'feet #10 1/2 = 5' feet (NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply) Fitting Set Model: FTSET404 1-N° 10 90° O-ring Fitting w/R134a Serv Port 1- N° 8 90° O-ring Fitting w/R134a Serv Port 1- N° 10 Straight O-ring Fitting 1- N° 10 90° O-ring Fitting 2- N° 6 90° O-ring Fitting 1- N° 8 90° O-ring Fitting 2- N° 6 Straight O-ring Fitting Set include metal FERRULES and CLAMPS
Electrical Harness all ours kits come with “Plug and Play” Electrical harness to easily connect all the components designed for a regular size car or trucks applications. for special Lengths applications please contact us NOTE: Gas R-134a, compressor mounting bracket is not included, we sold separately We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.

U$S 1.121,25

49% OFF

U$S 575,00

IMPORTÁ FACIL

Comprando este producto podrás descontar el IVA con tu número de RUT

U$S 1.121,25

49% OFF

U$S 575,00

Llega en 30 a 45 días hábiles

Tienes garantía de entrega

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

¿Qué es Tiendamia?

Fácil, rápido y seguro

Garantía de entrega

100% garantizada

Devoluciones

dentro de los primeros 7 días de recibido

Pago 100% seguro

con todas las tarjetas

Información de Aduanas

para tu compra

Sé un Ciudadano de Tiendamia

para beneficios extra

Únete ahora

Ayuda y atención

Consulta el centro de ayuda en línea

Contáctanos

Tarjetas prepagas, debito, y credito

Paga hasta en 12 cuotas sin interés con tarjetas de crédito.

Conoce más detalles

A/C KIT UNIVERSAL UNDERDASH APPLICATION: Small Cars, Classic Cars, Antique Cars, Truck Universal Under-Dash Evaporator Unit Model: E-432-0DCSL Cool Only Compressor Model: C5H142A12V SD508 5H14 Sanden Style 2A Groove Pulley 12v coil Also available 8PK Pulley Condenser Model: CPF121620 PARALLEL FLOW (micro-tube technology) Hoses Set Model: H6516,H81332, H1012 A/C HOSE #6 5/16 = 6'feet #8 13/32 = 4'feet #10 1/2 = 5' feet Fitting Set Model: FTSET404 1-N° 10 90° O-ring Fitting w/R134a Serv Port 1- N° 8 90° O-ring Fitting w/R134a Serv Port 1- N° 10 Straight O-ring Fitting 1- N° 10 90° O-ring Fitting 2- N° 6 90° O-ring Fitting 1- N° 8 90° O-ring Fitting 2- N° 6 Straight O-ring Fitting Set include metal FERRULES and CLAMPS If you decided use a/c clamps you don't need special crimper tool (YES... We include both systems) O-ring set is included Filter Drier Model: FD100A ALUMINUM Model: FD100B BLACK 2½"Diameter 7½"Hight Sight Glass #6 ⅜ X ⅜ O-ring connections both sides (HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED) (NOTE: Aluminum or Black) if you have a preference let us know leaving a message Condenser Fan Model: CF1212 12" Diameter 12 Volts 80W 6 AMP Reversible Puller or Pusher 4 Mounting Brackets included Electrical Harness all ours kits come with “Plug and Play” Electrical harness to easily connect all the components designed for a regular size car or trucks applications. for special Lengths applications please contact us extra charges maybe apply We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email
