SKU/Artículo: AMZ-B0CP7989SL

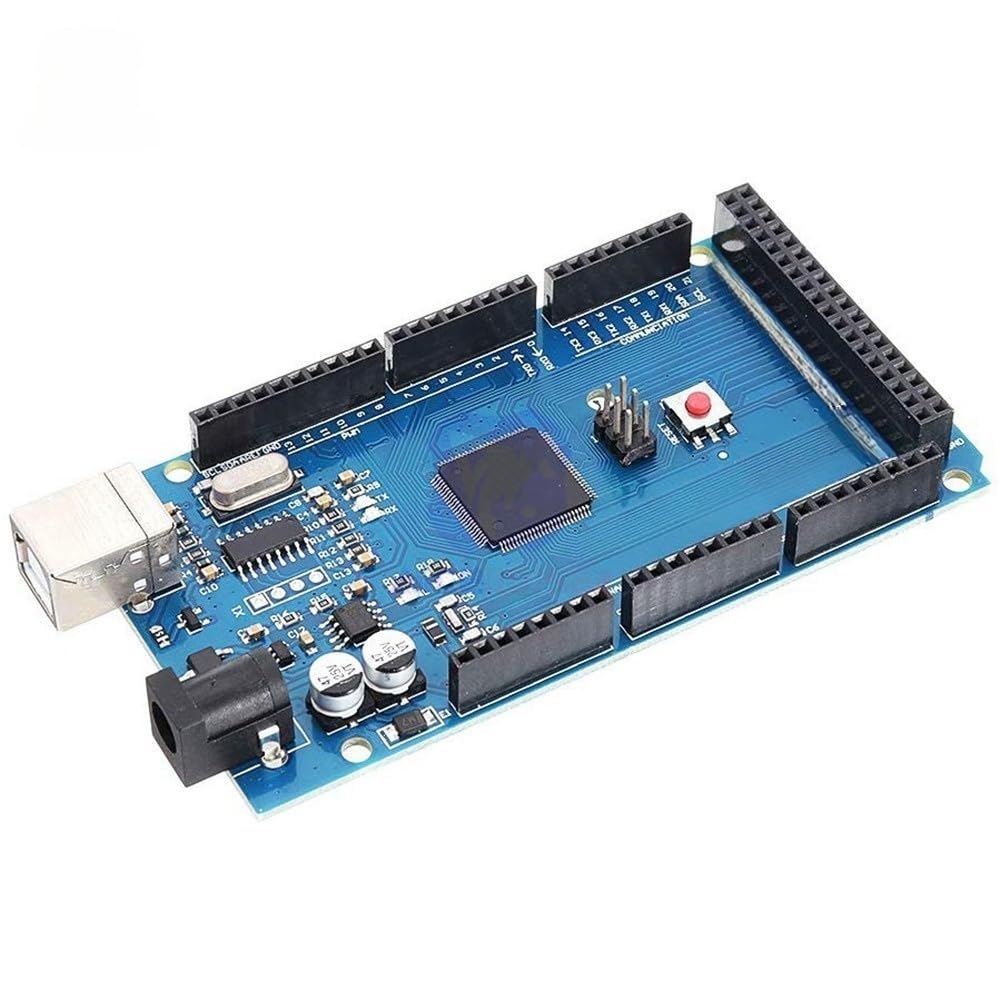

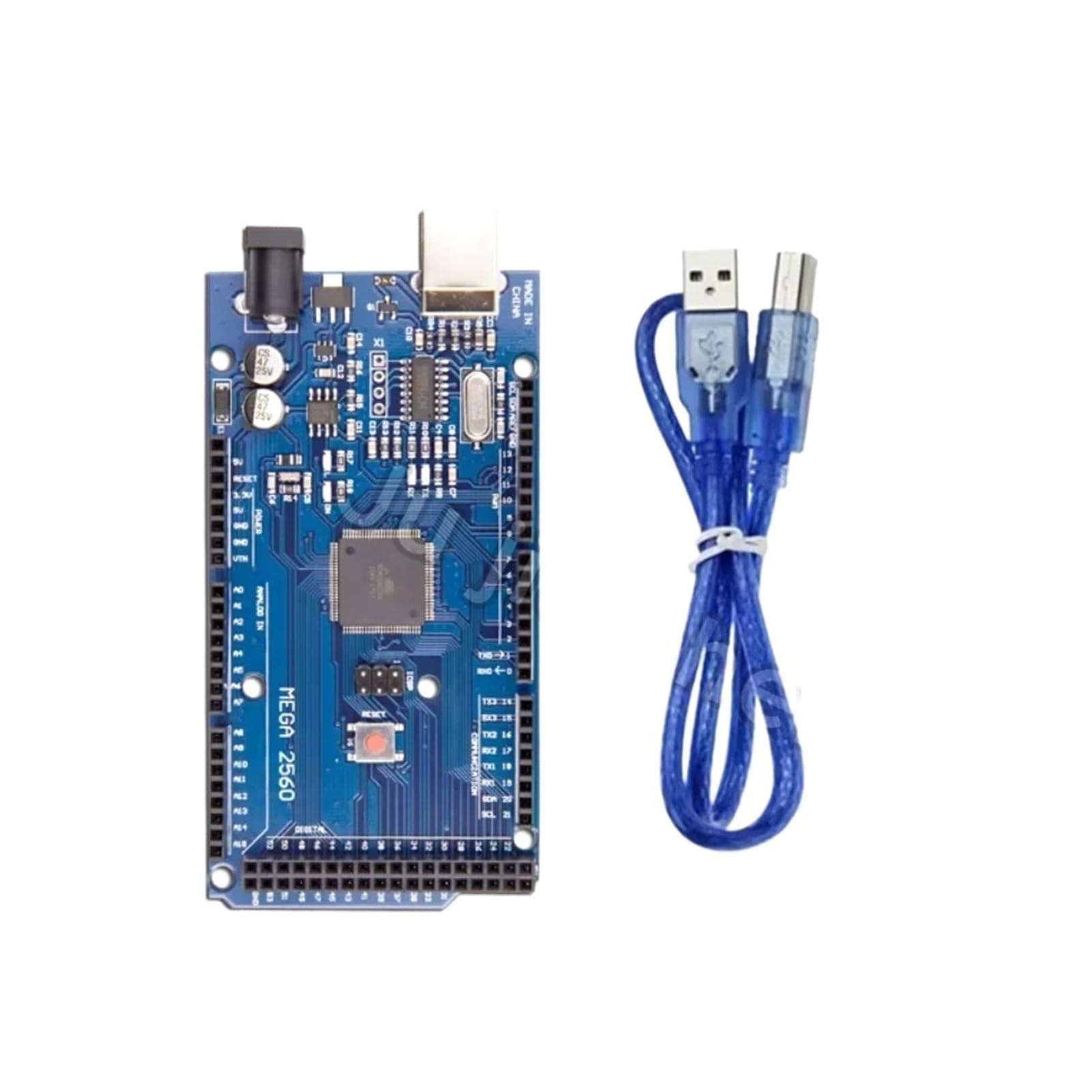

Mega2560 + WiFi R3 ATmega2560+ESP8266 32Mb Memory USB-TTL CH340G Compatible for Mega NodeMCU WeMos Development Board

Disponibilidad:
En stock
Peso con empaque:
0.52 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon

Sobre este producto
  • Mega2560 + WiFi R3 ATmega2560+ESP8266 32Mb memory USB-TTL CH340G Compatible for Mega NodeMCU WeMos Development board
U$S 48,77
55% OFF
U$S 22,17

IMPORTÁ FACIL

Comprando este producto podrás descontar el IVA con tu número de RUT

U$S 48,77
55% OFF
U$S 22,17

¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!

Llega en 11 a 15 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja de USA a tus manos en
Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

Product description: This product is integrated with MEGA R3 ATMEGA2560 and WIFIESP8266 as a new module; the modules on this development board can work independently or simultaneously, and have their own pin assignment headers. The combination of the two modules provides a more comfortable development environment for new project development, and it is also more convenient to update the firmware through the USB port. Features: The connection mode between modules can be freely switched by dialing the coding switch. The switching setting table is as follows: 1 2 3 4 5 6 7 8 CH340 connect to ESP8266 (upload sketch) OFF OFF OFF OFF ON ON ON NoUSE CH340 connect to ESP8266(connect) OFF OFF OFF OFF ON ON OFF NoUSE CH340 connect to ATmega2560(upload sketch) OFF ON ON OFF OFF OFF OFF NoUSE CH340 connect to Mega2560 COM3 connect to ESP8266 ON ON ON OFF OFF OFF OFF NoUSE Mega2560+ESP8266 ON OFF OFF OFF OFF OFF OFF NoUSE All modules work independent OFF OFF OFF OFF OFF OFF OFF NoUSE Product parameters: Supply voltage: 7-15V MCU: ATMEGA2560 WIFI MCU: ESP8266 USB bus control: CH340G |||
