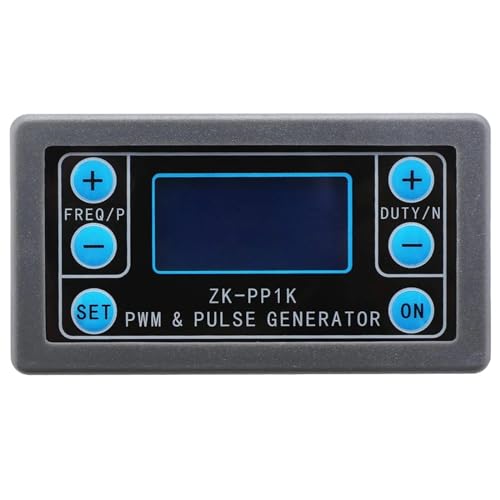

ZK-PP1K Signal Generator Dual Mode LCD PWM 1-Channel 1Hz-150KHz PWM Pulse Frequency Duty Cycle Adjustable Square Wave Generator (Color : ZK-PP1K)
Color:
ZK-PP1K
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Ammeters
- ZK-PP1K Signal Generator Dual Mode LCD PWM 1-Channel 1Hz-150KHz PWM Pulse Frequency Duty Cycle Adjustable Square Wave Generator
U$S 79,82
55% OFF
U$S 36,28
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 79,82
55% OFF
U$S 36,28
Llega en 15 a 25 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

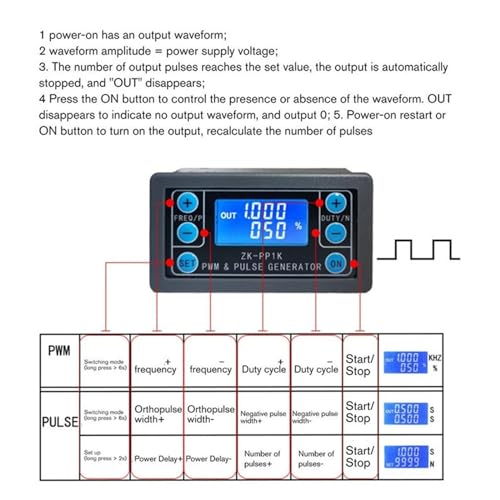

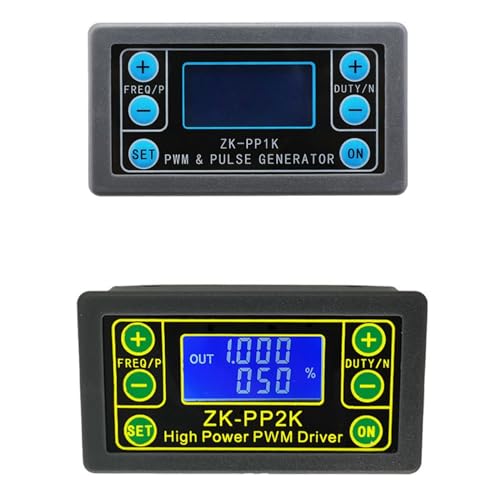

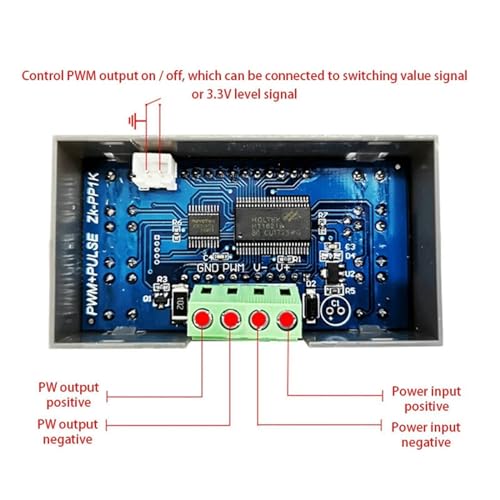

AmmetersFeatures:Dual mode: PWM mode and PULSE modeLCD high definition displaySupport frequency adjustmentSupport duty cycle adjustmentHigh precision detectionSupport power-down memory function1-Channel signal outputSupport reverse protectionSupport enabled/disabled outputParameter:Model: ZK-PP1KWork voltage: DC 3.3V -30VFrequency range: 1Hz~150KHzFrequency accuracy: 2%Duty cycle range: 0.00%-Number of pulses: 1~9999 or InfiniteDelay time: 0.000s~9999sPulse width: 0.000s~9999sTime accuracy: 1msOutput amplitude: Same to input voltageWork Temperature: -20 -85Work Humidity: 0% -95%RHSize: 79*43*26mPackage Included:1 * Signal GeneratorNote that the high-power PWM driver (PP2 and PP2K type) is a MOS switch type output. When the load is not connected, there is no waveform, and the waveform is only after the load is connected.A variety of practical scenes! ! !1. LED brightness adjustment, frequency, duty cycle can be adjusted2. Motor speed adjustment, frequency and duty cycle can be adjusted3. Drive the solenoid valve to pull and release, automatic cycle, delay output, cycle number (or infinite loop) can be set.4. Control equipment to turn on and off, do switch fatigue test, voltage sag and other tests to verify the reliability of customer equipment.5. Delay start load, delay time can be set, after the delay, it will be turned on or intermittently.1. Highlights:1.1can directly drive LED, motor, solenoid valve and other loads1.2 Two modes can be selected:PWM mode - frequency (continuous), duty cycle.Note that the number of pulses cannot be set in this mode, and the pulse is always emitted.PULSE pulse mode - positive pulse width time, negative pulse width time, power-on delay start time, and number of pulses are adjustable.1.3 With start and stop button, can control the
