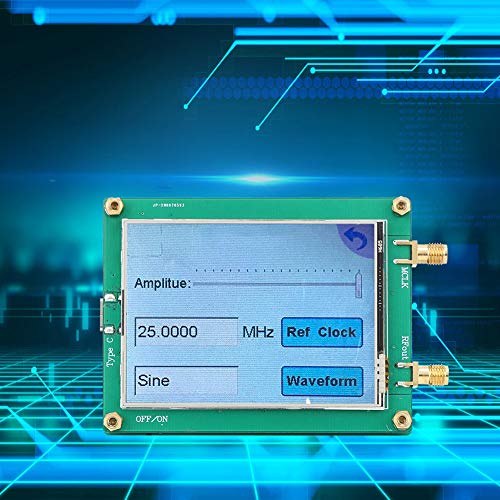

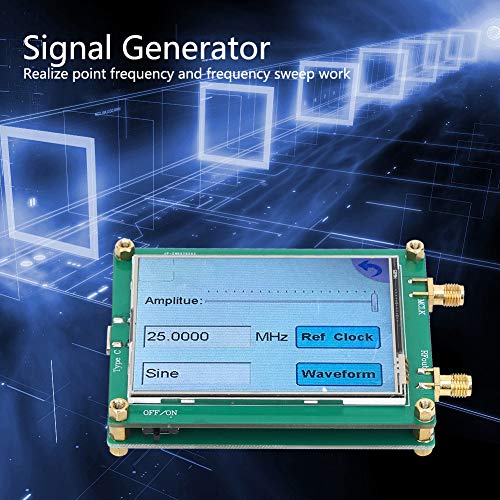

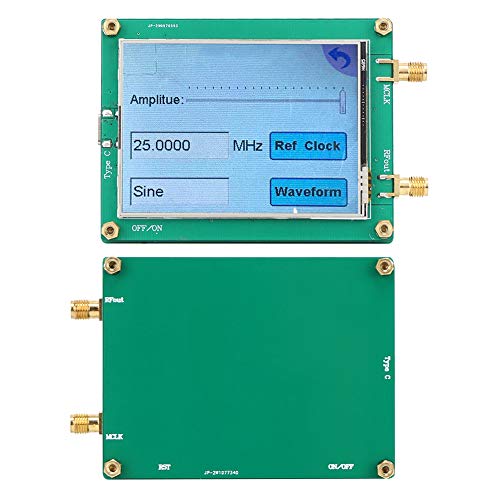

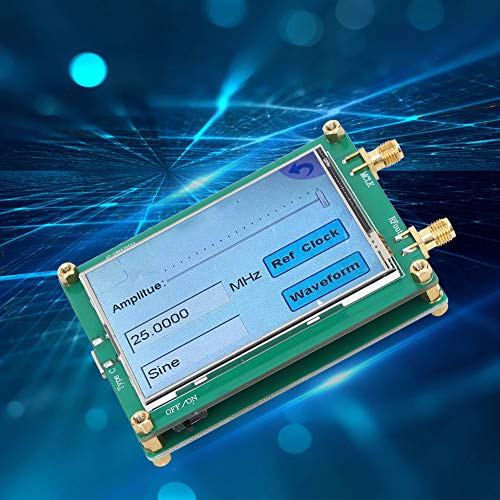

DDS Generator, AD9833 TFT Full Touch Screen Generator DDS Source Dot Frequency for Sine/Square
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Frequency Stimulation and Waveform Generation: The generator is capable of producing frequency stimulation and generating various waveforms, making it practical for a wide range of applications. This flexibility allows for customization to meet specific requirements.
- Liquid and Air Flow Measurement: In addition to its waveform generation capabilities, the DDS generator is capable of measuring liquid and air flow. This feature adds utility and versatility to the device, enabling it to be used in various practical applications.
- Sensor Applications: The generator is suitable for a variety of sensor applications, including proximity, motion and defect detection, line loss/attenuation testing and equipment, scan/clock generation, and time domain reflectometry (TDR) applications. This adaptability makes it a valuable tool for technical and industrial purposes.
- PC Connectivity: The generator is designed to interface with a PC via a Type-C interface, allowing it to be controlled and managed through host computer software. This feature enhances its usability and integration within a wider system or setup.
- Output Waveform Customization: The generator offers the capability to set output waveforms, including sine , triangle and square. This level of control enables precise waveform adjustments to suit specific application requirements.
U$S 135,94
55% OFF
U$S 61,79
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 135,94
55% OFF
U$S 61,79
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 15 a 25 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Specification: Item Type: DDS Generator Module Features: 1. Power Supply Voltage: Type c interface power supply [email protected] 2. Onboard 25MHZ Active Crystal Oscillator: Stepping accuracy is 0.1HZ, external input clock can be connected through three-way-equipment. 3. Point Frequency and Frequency Sweep Work: Achieved for full touch screen operation 4. Output Waveform: Sine , triangle and square can be set. 5. Output Amplitude: Sine and triangle are about 0.6Vpp (can be amplified by external amplifier), the high end of the frequency drops slightly; square is about 3Vpp 6. Output Impedance: 200R. It is recommended to add a buffer amplifier when loading 7. Output Frequency: Sine about DC-3MHz; square and triangle about DC-1MHz 8. Output and External Clock Interface: SMA female seat (outer screw inner hole) 9. The Man-Machine Interface with Three Interfaces: Main display, setting interface, and keyboard interface. Full touch control 10. Can communicate with PC through TYPE C interface to provide host computer software Package List: 1 x Generator 1 x USB Cable
