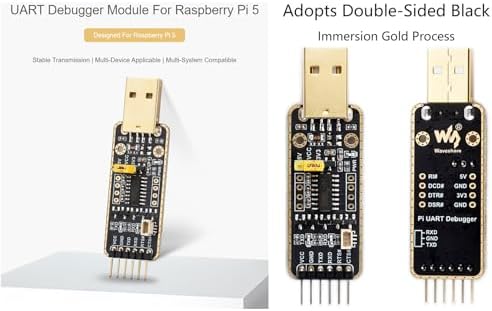

USB to UART Debugger Module for Raspberry Pi 5, Type-A Port, Onboard UART Connector, Supports Multiple Connection Methods/Multi-System Linux, Android, Windows 7/8/8.1/10/11,etc.
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- for Raspberry Pi 5 --- UART Debugger Module for Raspberry Pi 5, Type-A Port, Onboard UART Connector, High Baud Rate Transmission

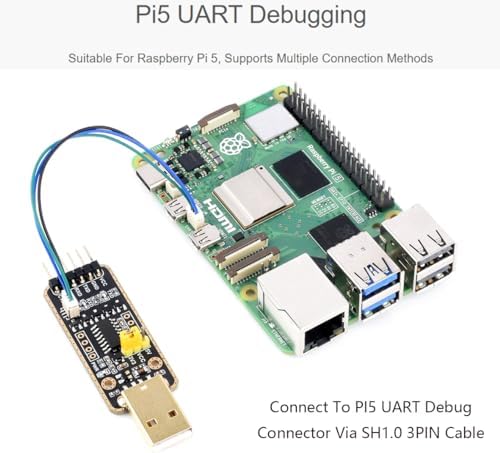

- Supports multiple Connection Methods ---Connect to PI5 UART Debug Connector via SH1.0 3PIN cable/ Connect onboard 6PIN header to PI5 GPIO UART Interface via 6PIN cable/ Connect onboard 6PIN header to PI5 UART Debug Connector via SH1.0 to 3PIN cable
- Supports Multi Systems ---Linux, Android, Windows 7/8/8.1/10/11,etc.
- Multiple Protection Circuit, Safe And Stable --- Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock proof performance, stable and safe communication performance
- Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance
- Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
- Supports 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)
U$S 13,91
31% OFF
U$S 9,59
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 13,91
31% OFF
U$S 9,59
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
USB To UART Debugger Module for Raspberry Pi 5, Type-A Port, Onboard UART Connector, High Baud Rate Transmission, Multi Connection Methods, Multi System Support Features Support Multiple systems--Supports Mac, Linux, Android, Windows 7/8/8.1/10/11 Supports multiple Connection Methods---Connect to PI5 UART Debug Connector via SH1.0 3PIN cable, Connect onboard 6PIN header to PI5 GPIO UART Interface via 6PIN cable, Connect onboard 6PIN header to PI5 UART Debug Connector via SH1.0 to 3PIN cable Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock proof performance, stable and safe communication performance Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level Supports 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly) Adopts double-sided black immersion gold process, which is durable and has a good look Comes with Tutorial and Online Development Resource: n9.cl/2wwve Specifications HOST INTERFACE--USB DEVICE INTERFACE--UART COMMUNICATION RANGE --50bps ~ 6Mbps USB DEVICE INTERFACE--connector: USB Type-A; protection: self-recovery fuse, ESD protection UART INTERFACE --connector: 6pin right-angle pinheader; 3pin connector; Protection: IO protection diode Package Content Pi UART Debugger x1 6-pin squid cable x1 SH1.0 connector to 3PIN cable ~100mm x1 Dual SH1.0 connector 3PIN cable ~100mm x1
