SKU/Artículo: AMZ-B0DJ75YGN8

Eujgoov

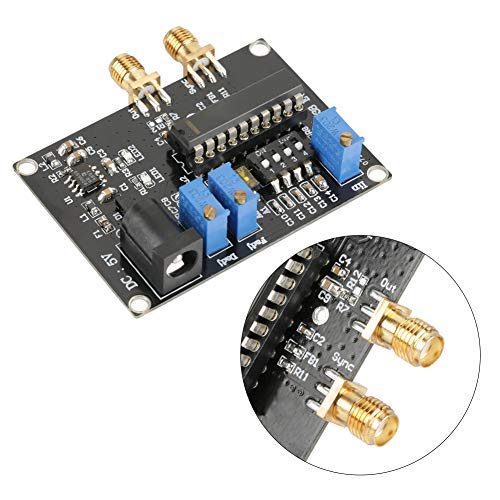

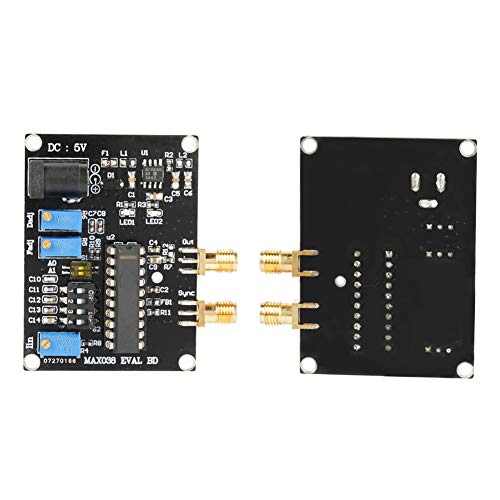

Function Generator, Function Module, Generator Module TriangularSineRectangularPulse Wa

0 5 4 1

1 calificaciones

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

[ADJUSTABLE FREQUENCY] - With an internal 2.5V bandgap voltage reference and external resistor and capacitor, the output frequency of the can be controlled from 0.1Hz to 20MHz.
[ OUTPUT] - Equipped with a low-impedance output buffer and low-distortion sine output, the delivers a clean . It is also compatible with TTL/CMOS and can synchronize external devices.
[HIGH- FUNCTION GENERATOR] - The is a high-frequency, precise function generator that produces accurate sawtooth, sine, square, and pulse waveforms with minimum external components.
[WIDE RANGE OF CONTROL] - The duty cycle of the waveforms can be easily adjusted over a wide range using a ±2.3V control , allowing for pulse-width modulation and sawtooth waveform generation.
[VERSATILE FUNCTIONALITY] - The not only supports frequency modulation and frequency sweeping, but it also offers independent controls for duty cycle and frequency.

U$S 66,53

60% OFF

U$S 26,61

U$S 66,53

60% OFF

U$S 26,61

Llega en 15 a 25 días hábiles

Tienes garantía de entrega

Medios de pago

Cantidad

Medios de pago

Conoce más detalles

1. The is a high-frequency, function generator producing accurate, high-frequency , sine, square, and pulse waveforms 2. The output frequency can be adjusted by the four-digit digital switch 3. Output waveform can be set by 2-digit digital switch 4. The frequency and duty ratio can be adjusted by potentiometer 5. Distortion can be adjusted by potentiometer Specification: Features: The is a high-frequency, function generator producing accurate, high-frequency , sine, square, and pulse waveforms The output frequency can be adjusted by the four-digit digital switch Output waveform can be set by 2-digit digital switch The frequency and duty ratio can be adjusted by potentiometer Distortion can be adjusted by potentiometer 0.1Hz to 20MHz Operating Frequency Range Independent Frequency and Duty-Cycle Adjustments 350 : 1 Frequency Sweep Range, 15% ~85% Variable Duty Cycle Low-Impedance Output Buffer: 0.1Ω, Low-Distortion Sine : 75%, Low 200ppm/°C Temperature Drift With TTL/CMOS compatible output, can be used to synchronize external devices Specifications: Power supply: [email protected] (single power supply) Working frequency: 0.1Hz ~ 20MHz Controllable duty ratio:15%-85% Weight: 19g Package includes: 1 x Module

Function Generator, Function Module, Generator Module TriangularSineRectangularPulse Wa
