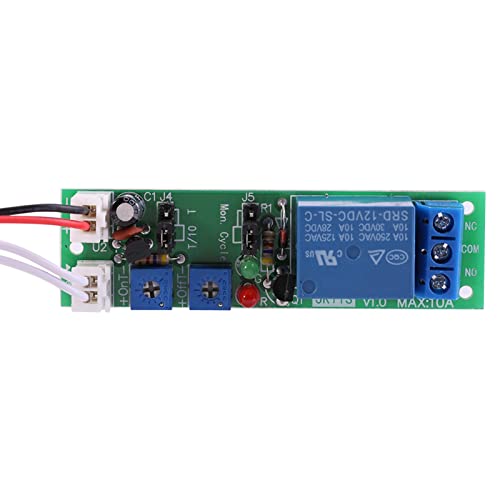

Ejoyous Cycle Timer Relay Module, DC 5V 12V 24V Adjustable Cycle Timer Delay On/Off Switch Relay Module (DC 12V 0-120 Minutes Adjustable)
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- STABLE PERFORMANCE: It is a timer relay module with high precision, stable and credible performance
- 2 MODES: Support 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper. Connect 2 wires of “Key ”if you need module to work recurrently after power on
- 6 TYPE OPTIONAL: DC5V,0-30min / DC5V,0-24hr / DC12V,0-120min / DC12V,0-24hr / DC24V,0-15min / DC24V,0-30min
- ADJUSTABLE DESIGN: There are many voltage and time range for your choice, both “on” time and “off” time are adjustable
- WIDELY USE: Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc
U$S 16,90
44% OFF
U$S 9,39
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 16,90
44% OFF
U$S 9,39
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 15 a 25 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Specification: Features: It is a timer relay module with high precision, stable and credible performance. Support 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper. Connect 2 wires of Key if you need module to work recurrently after power on. There are many voltage and time range for your choice, both on time and off time are adjustable. Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc. Specifications: Type: DC5V,0-30min/DC5V,0-24hr/DC12V,0-120min/DC12V,0-24hr/DC24V,0-15min/DC24V,0-30min (Optional) Quiescent Current: Dynamic Current: 45mA@12V; 90mA@5V; 30mA@24V Con tact: 1 group NO+NC Load Capacity: 10A(AC0-250V, DC0-30V) Size: 70*20*18mm / 2.75*0.78*0.7 Time Accuracy: value*0.001 Mon. Mode: 1. The module Power-on, When triggered the relay is switched on, timer delay off. 2. When triggered on the delay process, again triggered, it will immediately interrupt the delay. Cycle Mode: 1. The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively. 2. When triggered on the delay process, again triggered, it will immediately interrupt the delay. Package Includes: 1 x Timer Relay Module
