Mini Base Board for Raspberry Pi CM5 Lite/eMMC Series Module, Compute Module 5 Mini IO Board with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/USB 2.0 Interface etc.
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Mini Base Board for Raspberry Pi Compute Module 5 Lite/eMMC series module, with onboard CM5 socket, Gigabit Ethernet RJ45 connector, 40PIN GPIO header, 16PIN PCIe, USB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2, 4-lane MIPI interface × 2 , HDMI port × 2, RTC etc.
- Do not plug or unplug any device other than USB and HDMI when the device is powered on. When you need to use POE, connect the POE jumper cap to the EN position
- The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode
- Type C can be used as a USB SLAVE interface to flash images. Do not connect other devices when using Type C to flash. Insufficient power supply for flashing will cause the device to be unrecognized. Onboard default 2 USB 3.2 Gen1 ports. The USB ports have a total maximum power output of 2A
- Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version)
U$S 69,58
60% OFF
U$S 27,83
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 69,58
60% OFF
U$S 27,83
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

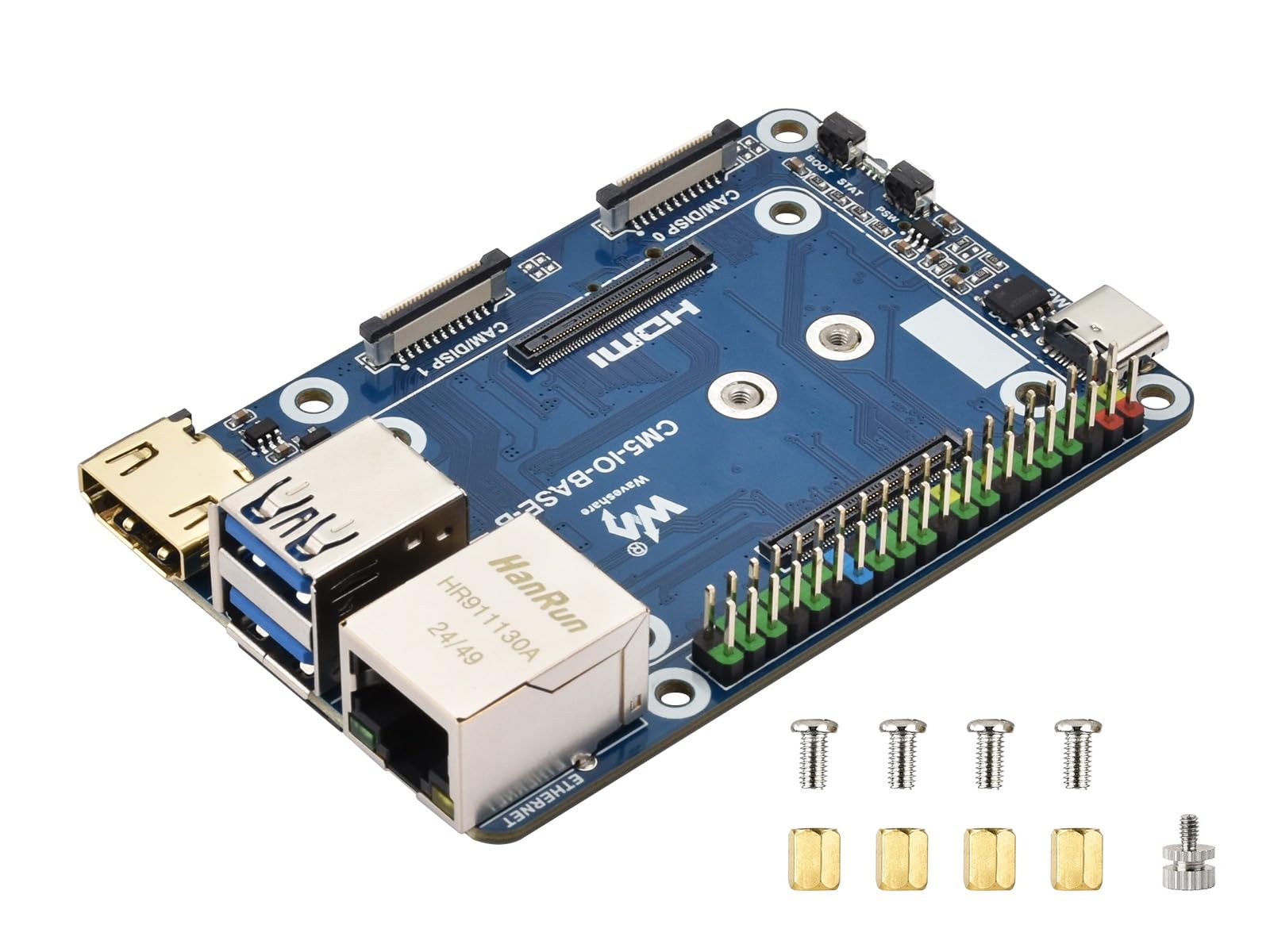

Introduction As the IO board of Compute Module 5, CM5-IO-BASE-A is a baseboard that can be used with Raspberry Pi Compute Module 5. With powerful features are integrated into a compact design, it is only the size of a bank card. It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users. Specifications CM5 Socket ---suitable for all variants of Compute Module 5 Networking ---Gigabit Ethernet RJ45 connector Connector ---16PIN PCIe (PCIe Gen2/3 x1) ---40PIN GPIO header USB ---USB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2 MIPI ---4-lane MIPI interface × 2 (22pin 0.5mm FFC connector) Video ---HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs Storage ---TF card slot for Compute Module 5 Lite (without eMMC) variants Fan Header ---5V, 4PIN JST-SH PWM connector Power Input ---DC 5V 5A Dimensions ---85 × 56mm Package Content CM5-IO-BASE-A x1 Screws pack x1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
