SKU/Artículo: AMZ-B0F299JQ2F
waveshare

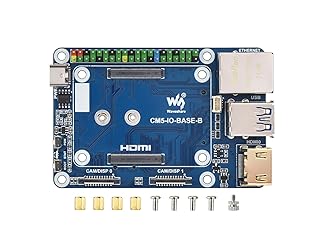

Mini Base Board for Raspberry Pi CM5 Lite/eMMC, Compute Module 5 Mini IO Board with Gigabit Eth/40PIN GPIO/M.2 M Key/USB 3.2/USB 2.0/HDMI Interface etc. Onboard EEPROM and Encryption Chip
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Overview Mini Base Board (B) designed for Raspberry Pi Compute Module 5, onboard multiple connectors, EEPROM and encryption chip, suitable for evaluating the CM5 or being integrated into end products. Specifications CM5 socket---suitable for all variants of Compute Module 5 Networking---Gigabit Ethernet RJ45 connector Connector ---M.2 M KEY (2230 / 2242) ---40PIN GPIO header USB---USB 3.2 Gen1 Type-A × 2, USB 2.0 × 2 (6PIN 1mm FFC connector) MIPI---4-lane MIPI interface × 2 (22pin 0.5mm FFC connector) Video---HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs Storage---TF card slot for Compute Module 5 Lite (without eMMC) variants Fan header---5V, 4PIN JST-SH PWM connector Others---Onboard EEPROM and Encryption chip Power input---DC 5V 5A Dimensions---85 × 56mm Features and Precautions 1. Do not plug or unplug any device other than USB and HDMI when the device is powered on 2. Type C can be used as a USB SLAVE interface to flash images. 3. Onboard default 2 USB 3.2 Gen1 ports 4. Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version) 5. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode 6. Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized 7. The USB ports have a total maximum power output of 2A Package Content CM5-IO-BASE-B x1 Screws pack x1 SSD mounting screw x1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
U$S 77,40
60% OFF
U$S 30,96
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 77,40
60% OFF
U$S 30,96
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Conoce más detalles
Mini IO Base Board for Raspberry Pi Compute Module 5 Lite/eMMC series module, dimensions: 85 × 56mm, with onboard CM5 socket suitable for all variants of Compute Module 5, color-coded Pi 40PIN GPIO header for connecting various HAT / HAT+ modules, M.2 M KEY supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive Onboard RJ45 Gigabit Ethernet port supports 10M / 100M / 1000M network access, 2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation, 2x USB 2.0 FFC connector, can be connected through an adapter Onboard 2x MIPI interfaces for connecting DSI displays and CSI cameras, 2x HDMI port, HDMI0 connector supports 4K output, HDMI1 FFC connector, supports 4K output, can be connected through an adapter Onboard TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY) , PWM Fan header for connecting cooling fan, 5V power supply Onboard EEPROM and encryption chip, provides fast and secure symmetric authentication
