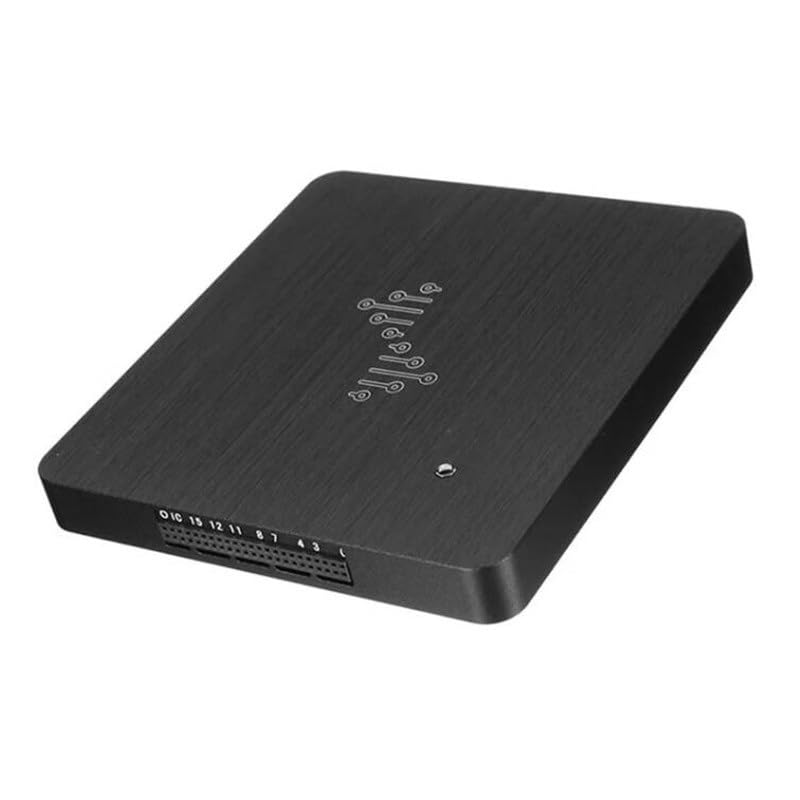

DSLogic Plus USB-Based Logic Analyzer with 400MHz Sampling Rate, 256Mbits Memory, USB 2.0 Interface, 16 Channels
Disponibilidad:
En stock
En stock
Peso con empaque:
1.29 kg
1.29 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- 16 digital channels. Dual-mode support. In stream mode, data will be captured and transferred into PC memory in real time. With this mode, you can get long sample duration; In buffer mode, data will be captured and stored into on-board memory temporarily. With this mode, you can get a high sample rate.
- USB 2.0 type-c interface. Up to 16G sample depth in stream mode. Support following stream modes: 100MHz @ 3 channels / 50MHz @ 6 channels / 25MHz @ 12 channels / 20MHz @ 16 channels.
- 256Mbits on-board SDRAM memory. Support following buffer modes: 400MHz @ 4 channels / 200MHz @ 8 channels / 100MHz @ 16 channels.
- Support adjustable threshold (0.1 Step). Additionally with shielded fly wires and unibody aluminum case, you can get a better and cleaner waveform.
- Worked with DSView software, which is compatible with Windows, macOS and Linux. DSView supports nearly a hundred protocol decoders. Additionally it's also an open source software, you can find it on github.
U$S 374,98
60% OFF
U$S 149,99
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 374,98
60% OFF
U$S 149,99
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

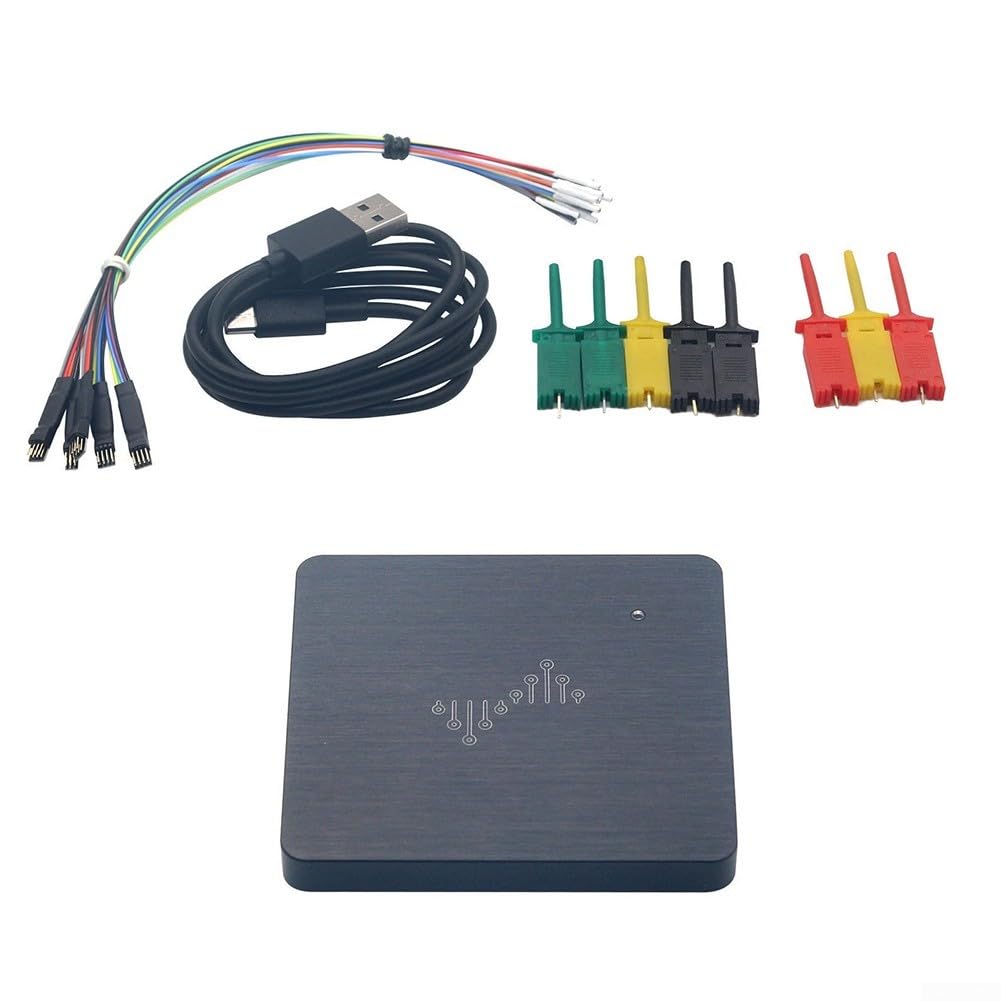

SPECIFICATION -Model: DSLogic Plus -Channel: 16 -USB transmission rate: USB2.0 (480bps) -Sampling rate under buffer mode: 400MHz @ 4 channels / 200MHz @ 8 channels / 100MHz @ 16 channels -Sampling rate under stream mode: 100MHz @ 3 channels / 50MHz @ 6 channels / 25MHz @ 12 channels / 20MHz @ 16 channels -Min. sampling pulse width: 5ns -Max. sampling signal: 100MHz -Max. sampling depth: 16G under stream mode / 256M under buffer mode -Max. sampling duration in stream mode: 160s @ 100M / 4H @ 1M / 19D @ 10K -Hardware memory: 256Mbits -Threshold: 0-5V (0.1V step) -Input voltage: -30V~+30V -Input impedance: 250K//~13pF -State sampling: max. 50MHz -Operation System Supported: Win, Mac OS, Linux -Size: 3.1*2.9*0.4in PACKAGE -1 x Logic Analyzer -4 x Group of Shielded Wires -1 x USB 2.0 Cable -16 x Test Hook -1 x English Manual
