SKU/Artículo: AMZ-B0G4N4SS6Q

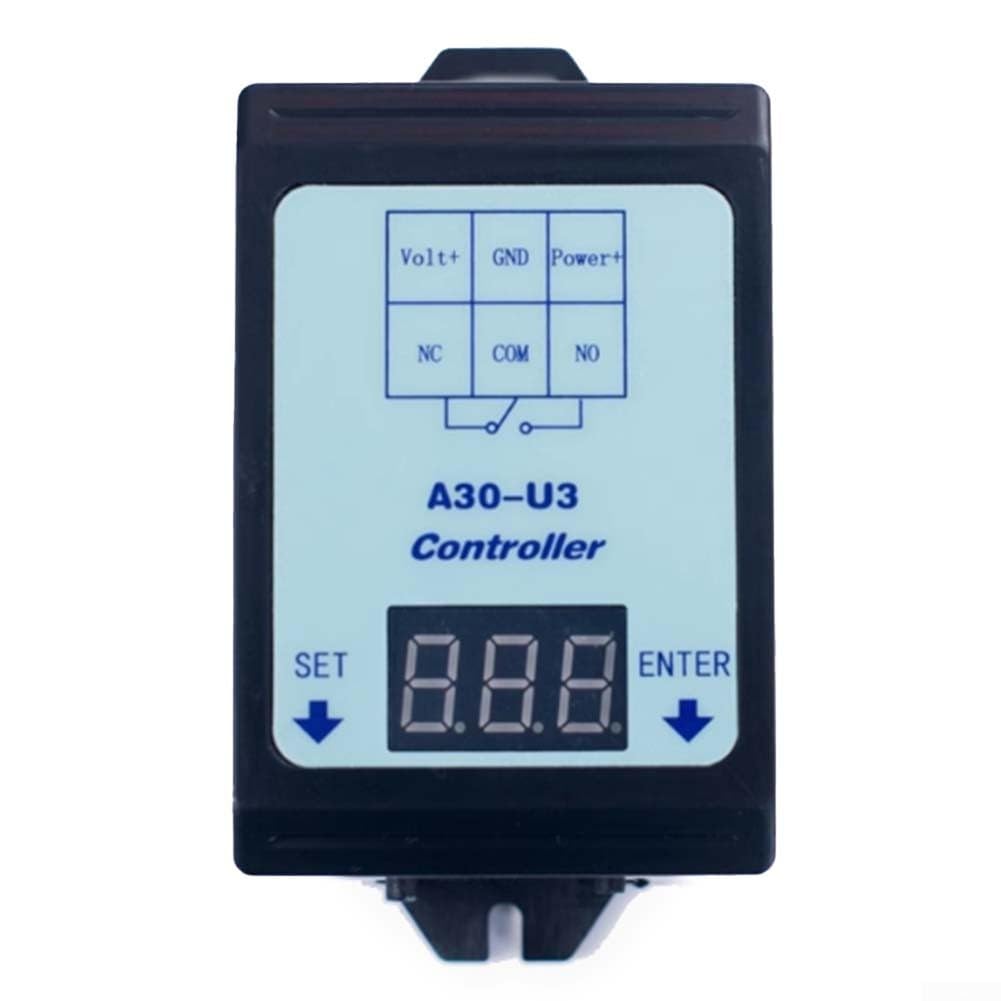

DC 6-80V Voltage Monitoring Relay with Adjustable 0-999s Time Delay, A30-U3 Load Charge and Discharge Controller for Overvoltage and Undervoltage Protection in Industrial Electrical Systems
En stock
0.36 kg
No
Nuevo
Amazon
- 【Wide Voltage Range】: Supports DC 6~80V working power supply, compatible with up to 60V battery systems, enabling versatile use across industrial voltage monitoring, safety relays, and load control applications.
- 【Adjustable Time Delay】: Offers 0–999 seconds programmable delay for relay opening or closing, with four operating modes to tailor voltage control and discharge cycles for precise operational timing.
- 【High Load Capacity】: Relay contacts rated up to 30A/250V AC or 30A/30V DC for normally open, and 20A for normally closed, with automatic settings save function to retain configurations after power loss.
- 【Accurate Voltage Detection】: Monitors DC 0–99.9V with ±0.1V accuracy, featuring upper/lower limit adjustment and fast detection sampling of 0.1–0.9s, enabling reliable overvoltage and undervoltage protection.
- 【Long Lasting Performance】: ABS construction, mechanical life up to 10 million cycles and electrical life 100,000 operations at 10A/250V AC, with built-in forestall contact wear for extended operational safety.
