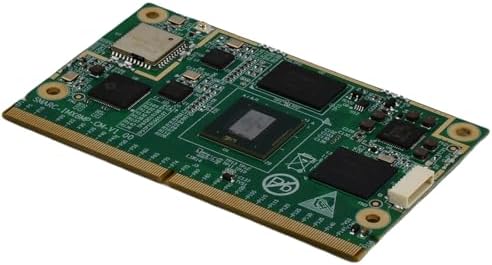

SMARC2.1 Standard Module i.MX8M Plus System on Module Linux/Android Embedded Systems NXP Quad Cortex-A53+Cortex-M7,2GB LPDDR4+16GB EMMC,2.3Tops NPU,Support Wi-Fi,Bluetooth,Gigabit Ethernet,CAN
Disponibilidad:
En stock
En stock
Peso con empaque:
0.52 kg
0.52 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Strong performance，Enable full ‘Core’functions--SMARC-IMX8MP-CM SOM module is based on NXP i.MX8M Plus processor,12nm FinFET process,it integrates with a Quad-Core 1.6GHz Cortex-A53 core and a real-time 800MHz Cortex-M7 core.
- Conforms to SMARC 2.1 industry standard, Carrier Board is flexible to redesign--Comply with SMARC 2.1 industry standard, the size is only 82mm*50mm.It is available to do compatibility test for the carrier board and system which are under SMARC standard, to improve the system flexibility and scalability thoroughly.
- Multi-platform compatibility, No-worries for upgradation, Friendly use--IMX8MPlus and RK3568 are SMARC SOM modules, the users could choose different SOM modules according to their requirements, no need to replace the SMARC-MB carrier board, it is available for flexible product upgrades.
- Excellent graphic processing for machine learning and vision--With a NPU providing 2.3TOPS computing power for the edge machine learning, and integrates with a 2D/3D GPU graphic accelerator. It suits for the industries such as machine learning, vision system and intelligent sensor, etc.
- Strong multi-media functions, outstanding audiovisual performance--It supports 1080p 60 H.265/H.264 video encoding and 1080p 60 H.265/H.264/VP9/VP8 video decoding; It supports LVDS,HDMI2.0 port; Meanwhile, it integrates with a HiFi 4 DSP, 6-ch SAI channel, it supports I2S, AC97, TDM multi-digital audio port, 8 channel PDM MIC input.
- Abundant peripheral ports, excellent scalability--Onboard with 2-ch Gigabit Ethernet, 2-ch USB, 2-ch M.2(To connect SSD, 4G/5G module),2-ch CAN-FD, LVDS, HDMI, I2C,4-ch RS232, 1-ch RS485, etc. to satisfy different application scenarios.
- With various test certifications, to provide reliable guarantee--REACH SVHCs、REACH Annex XVII, RoHS2.0, CE qualified, it provides safe, compliant, reliable product guarantee
U$S 339,30
44% OFF
U$S 188,50
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 339,30
44% OFF
U$S 188,50
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 25 o más días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
SMARC-IMX8MP-CM System on Module（SoM）offers Quad-core ARM Cortex-A53 processors in combination with the Cortex-M7 real-time processor, GC7000UL multimedia 2D/ 3D GPU and a Machine Learning Accelerator (2.3 TOPS). It provides fast LPDDR4 memory, up to 32GB eMMC Flash memory, 2x Gigabit Ethernet, USB 2.0, Type-C，an on-board Wi-Fi/Bluetooth Module, the Image Signal Processor supports 2x MIPI-CSI (4-lane), as well as an extensive set of interfaces for embedded applications. The module is compliant with the SMARC2.1 standard, allowing easy integration with SMARC carrier boards. For evaluation and design-in of the SMARC-IMX8MP-CM module, Qiyang provides a development platform and a starter kit. Multiple Operating Systems like Linux5.10, Android11 are supported.
