SKU/Artículo: AMZ-B0GLPB8VRX

Mhlruul

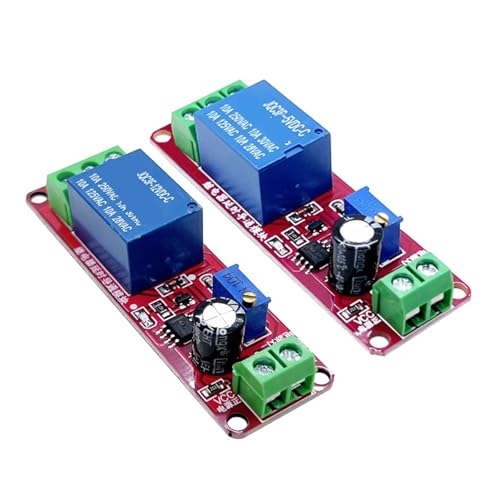

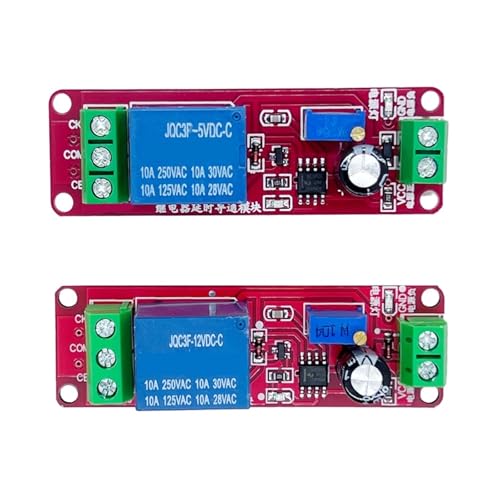

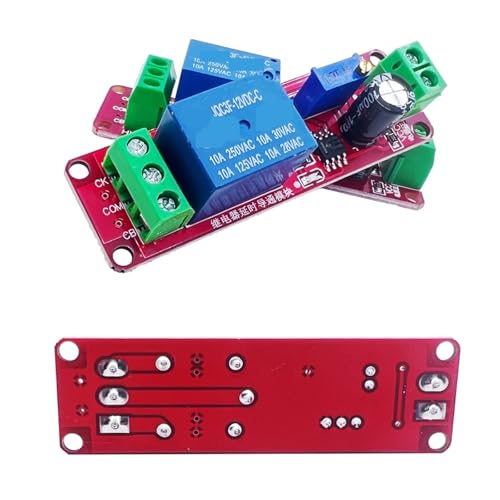

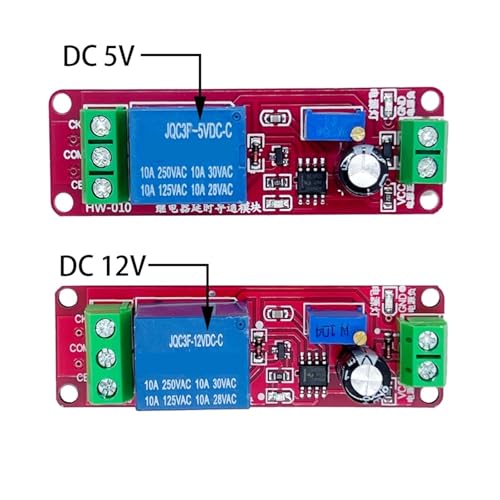

NE555 DK555 Timer Switch Adjustable Disconnect Module Time delay Relay Module DC 12V Delay Relay Shield 0~10S(5V)

Color:

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Timer Switches
NE555 DK555 Timer Switch Adjustable Disconnect Module Time delay relay Module DC 12V Delay relay shield 0~10S
Package : Module
Dissipation Power : 5V/12V
Supply Voltage : 5V/12V
Application : Computer Type : Voltage Regulator

U$S 63,23

55% OFF

U$S 28,74

U$S 63,23

55% OFF

U$S 28,74

Llega en 25 o más días hábiles

Tienes garantía de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

Timer SwitchesBrief description]size: 6.8CM * 2.1CMSecond, the main chip: NE555Third, the working voltage: 12V Four characteristics:1, power relay delay pull. Specifically: 12v power supply to the relay, the relay will not immediately sucked and status relay outputs are: normally open disconnected public, normally closed and public conduction; wait until the delay 1-10s (adjustable), the relay suction and, this time, the relay output status is: normally open and public conduction, normally closed and public disconnected; as long as uninterruptible power module, this state will remain.2, the delay time is adjustable, (0 to 10 seconds)4, increasing the potential can increase the delay time5, increasing the capacitor C1 can increase the delay time6, with input power indicator7, with relay indicator8, can control AC 220V / 10A about equipment. (Maximum control equipment 2000W)9, with freewheeling protection relay.10, the delay time : T = 1.1RC. For example: a resistor capacitor 100uf 100K T = 1.1 * 100000 * 0.0001 = 11 seconds[Applications]1, the delay-vehicle device is turned on, to prevent excessive current when the car ignition burn-vehicle device.2, you need to have in order to start the occasion, to prevent multiple devices simultaneously starting current is too large burning appliances.==========Package : ModuleDissipation Power : 5V/12VSupply Voltage : 5V/12VApplication : ComputerType : Voltage RegulatorOperating Temperature : -40-+85

NE555 DK555 Timer Switch Adjustable Disconnect Module Time delay Relay Module DC 12V Delay Relay Shield 0~10S(5V)
