SKU/Artículo: AMZ-B0DSS7YH81

Rattmmotor

RATTMMOTOR CNC Spindle Motor Kit, 2.2KW Air-Cooled Spindle Motor ER20 110V 80mm High Speed Spindle 24000RPM+2.2KW 110V VFD Single to 3 Phase Inverter Variable Frequency Drive Converter for CNC Router

0 5 5 1

1 calificaciones

Disponibilidad:
En stock

Peso con empaque:
6.69 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

【Package Include】: ①1 x 2.2KW Air Cooled Spindle Motor ER20 ②1 x 2.2KW VFD 110V
【Spindle Motor ER20 Collet】The 2.2KW 15A air-cooled spindle motor volate is 110V, frequency is 400HZ ,and less than 0.01mm runout off, 0-24000RMP speed. It should be noted that the spindle speed must be kept above 9000 rpm, otherwise the spindle will be damaged.

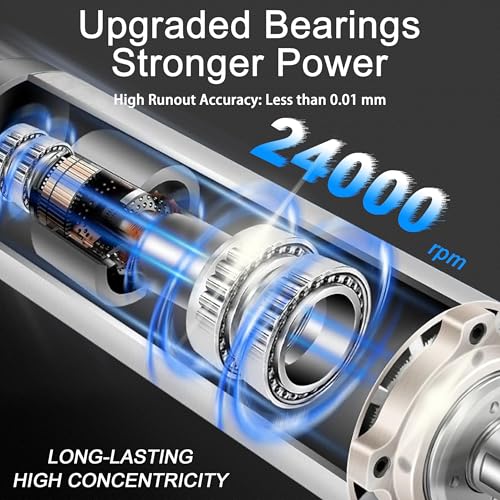

【Spindle Motor Features】This spindle is designed with a dustproof and waterproof cover, the body is made of stainless steel, and the rear is equipped with a cooling fan, which is of high quality. In addition, it contains 3 bearings, high-precision grinding taper hole, high-precision, low noise.
【VFD Inverter Parameters】Power:2.2KW, Input Voltage: 110V(+/-15%) ,Output Voltage 110VAC, Input Frequency: 50-60Hz, Output Frequency: 0-1000Hz, Input Phase: 1 phase, Output Phase: 3 phase.It provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation.
【VFD Inverter Advantages】Other Fuctions: With over torque and under torque detection; With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.It can also avoid the impact of production due to instantaneous power failure because of instantaneous power-down retention function. What's more, it supports multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting,ect.
【How to Connect Spindle Motor and VFD】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected separately with inverter's port U, V, W. Number 4 is the ground wire, no wiring is required.

U$S 228,00

20% OFF

U$S 182,40

U$S 228,00

20% OFF

U$S 182,40

Llega en 5 a 11 días hábiles
