SKU/Artículo: AMZ-B0FM8DNCXR

Wonrabai

CM5 to Pi 5 Adapter Board, Alternative Solution for Raspberry Pi 5, Onboard Audio Header, Supports Connecting to Microphone, Rich Interfaces (CM5 not Include)

0 5 5 1

1 calificaciones

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

As the IO board of the Compute Module 5, CM5-to-Pi5-Adapter is a baseboard that can be used with all variants of Compute Module 5. With powerful features are integrated into a compact design, it is only the size of a bank card. It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users.

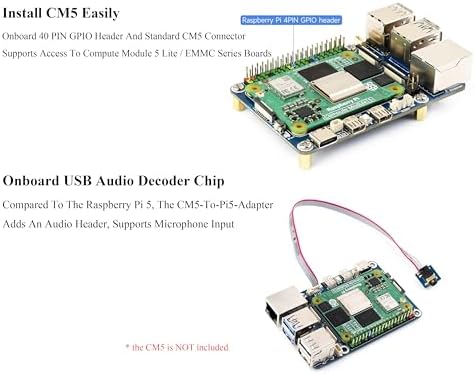

Alternative Solution for RPi 5: Based on Compute Module 5, Using CM5 to reproduce the original appearance of the Pi 5 as much as possible. Compatible with Raspberry Pi 5.

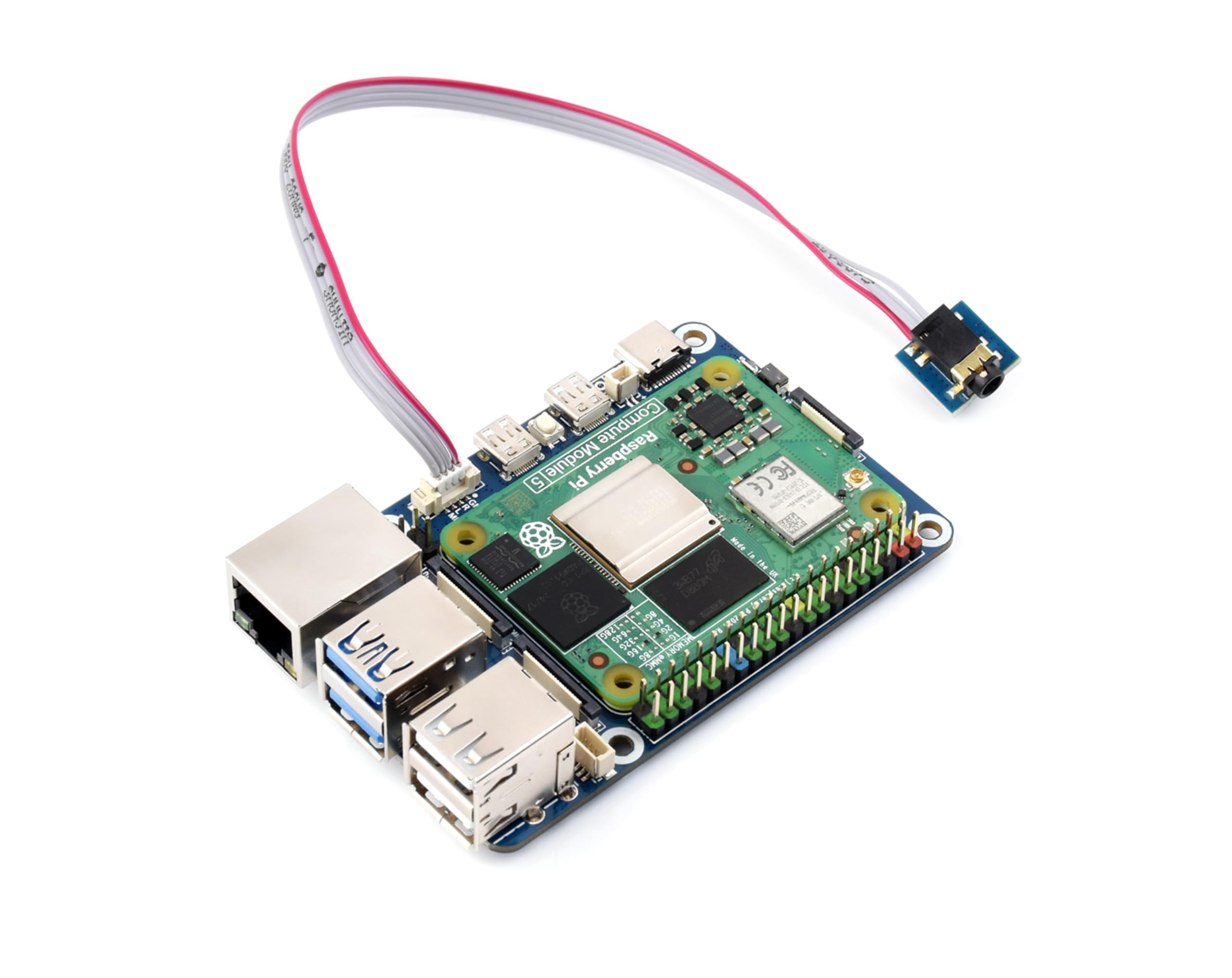

Onboard USB Audio Decoder Chip: Compared to the RPi 5, the CM5-to-Pi5-Adapter adds an audio header, supports microphone input.
Type C can be used as a USB SLAVE interface to flash images. Onboard default 2 USB 3.2 Gen1 port. Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version).
Do not connect other devices when using Type C for flashing. Insufficient power supply will cause the device to be unrecognized. The USB2.0 ports have a total maximum power output of 2A, and the USB3.0 ports have a total maximum power output of 2A.
Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/15b76

U$S 58,73

44% OFF

U$S 32,63

U$S 58,73

44% OFF

U$S 32,63

Llega en 11 a 15 días hábiles

Tienes garantía de entrega

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

¿Qué es Tiendamia?

Fácil, rápido y seguro

Garantía de entrega

100% garantizada

Devoluciones

dentro de los primeros 7 días de recibido

Pago 100% seguro

con todas las tarjetas

Información de Aduanas

para tu compra

Sé un Ciudadano de Tiendamia

para beneficios extra

Únete ahora

Ayuda y atención

Consulta el centro de ayuda en línea

Contáctanos

Tarjetas prepagas, debito, y credito

Paga hasta en 12 cuotas sin interés con tarjetas de crédito.

Conoce más detalles

Features Alternative Solution for RPi 5: Based on Compute Module 5, Using CM5 to reproduce the original appearance of the Pi 5 as much as possible. Compatible with Raspberry Pi 5. Onboard USB Audio Decoder Chip: Compared to the RPi 5, the CM5-to-Pi5-Adapter adds an audio header, supports microphone input. Networking: Gigabit Ethernet RJ45 port Connector:16PIN PCIe (PCIe Gen2/3 x 1) Pi 40PIN GPIO header x 1 USB:USB 3.2 Gen1 x 2; USB 2.0 x 2 MIPI: MIPI 4-lane interface x 2 (22pin 0.5mm FPC connector) Video: HDMI port x 2, supports dual 4K outputs Audio: Onboard audio header, comes with an audio adapter for connecting 3.5mm headphone / microphone, enabling audio input and output Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants Fan Header: 5V, 4PIN JST-SH PWM connector Power Input: DC 5V 5A Precautions 1. Do not plug or unplug any device other than USB and HDMI when the device is powered on 2. Type C can be used as a USB SLAVE interface to flash images 3. Onboard default 2 USB 3.2 Gen1 port 4. Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version) 5. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode 6. Do not connect other devices when using Type C for flashing. Insufficient power supply will cause the device to be unrecognized 7. The USB2.0 ports have a total maximum power output of 2A, and the USB3.0 ports have a total maximum power output of 2A Package Content CM5-to-Pi5-Adapter x 1 Audio-Adapter x 1 MX1.25 4PIN dual-plug cable ~200mm x 1 Screws pack x 1

CM5 to Pi 5 Adapter Board, Alternative Solution for Raspberry Pi 5, Onboard Audio Header, Supports Connecting to Microphone, Rich Interfaces (CM5 not Include)
